64PKA121 Mitutoyo Laser Scan Micrometer 512S & Display

64PKA121 Mitutoyo Laser Scan Micrometer 512S & Display

  • $ 13,680.00
  • Save $ 4,000

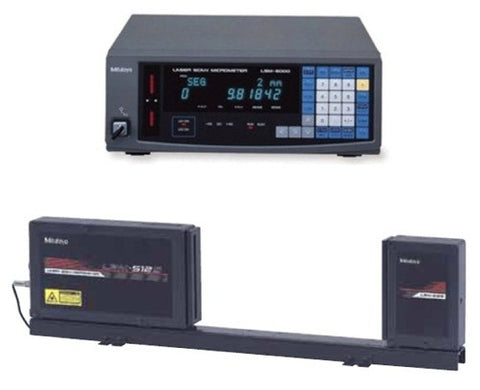

Mitutoyo Laser Scan Micrometer LSM-512S Package

This package includes Mitutoyo's Laser Scan Micrometer model # LSM-512S and their Laser Scan Digital Display model # LSM-6200.

Quicktool is a free downloadable software utility that Mitutoyo makes available for our Laser Scan Micrometer customers that makes programming the LSM-6200 Digital Display very quick and easy.

Mitutoyo's High Accuracy Laser Scan Micrometers offer the following...

  • Excellent linearity: down to +/- 0.3 micron.
  • High-speed scanning capable: 3,200 scans per second.
  • Various ranges available for selecting the best laser for your application.
  • Statistical calculation mode.
  • Memory function has been increased to allow storage of up to 100 programs.

Package includes...

  • Model # LSM-512S Measuring Head
    • .04" - 4.72" / 1 - 120mm Measuring Range
    • 3,200 scans per second
    • Display Connecting Cable
  • Model # LSM-6200 Digital Display
    • 7 Digit Resolution
    • SPC Output
    • 2-Inputs Capable



Promo includes FREE Ground Shipping!
