544-499A Mitutoyo Laser Scan Micrometer 902H & Display

544-499A Mitutoyo Laser Scan Micrometer 902H & Display

  • $ 11,590.01
  • Save $ 609.99


Mitutoyo Ultra-High Accuracy Laser Scan Micrometer model LSM-902H & Display Package

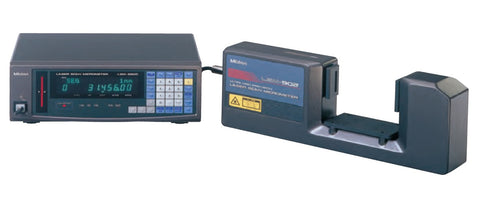

This package includes Mitutoyo's high accuracy Laser Scan Micrometer model # LSM-6902H and their Laser Scan Digital Display model # LSM-6200.

Quicktool is a free downloadable software utility that Mitutoyo makes available for our Laser Scan Micrometer customers that makes programming the LSM-6200 Digital Display very quick and easy.

Features include...

  • Improved narrow range Repeatability of 0.03μm / 1.2μin
  • The best repeatability available in the 25mm / 1" class.
  • The ultra-precise scanning motor enables the highest measurement accuracy.
  • Thanks to excellent linearity, an accuracy of ±0.5μm over the entire measuring range and a higher accuracy of ±(0.3+0.1ΔD)μm over a narrow range are guaranteed.
  • An excellent option for measuring pin gages or plug gages.

Specifications include...

  • Measuring Range: 0.004" - 1.00" / 0.1mm - 25mm
  • Selectable Resolutions...
    • .000001" - .0005"
    • 0.00001mm - 0.01mm

 Mitutoyo Laser Scan Micrometers Brochure... Click Here
