PH-3515F Mitutoyo Optical Comparator w/ M2 Geometric Display

  • $ 15,400.00
  • Save $ 1,500

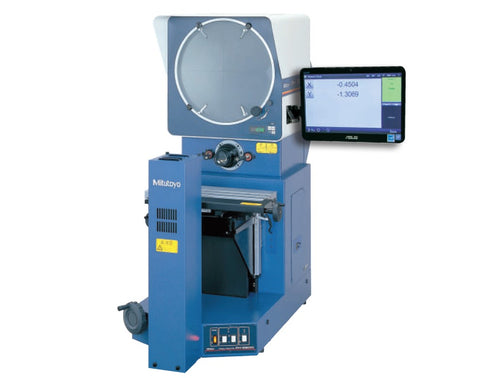

Mitutoyo PH-3515F Optical Comparator Package

Mitutoyo's PH-3515F is a heavy-duty, bench-top optical comparator that uses a horizontal optical system. This optical comparator includes an 8” x 4” floating-type workstage that incorporates linear scales for fast, accurate measurement. The workstage provides high accuracy and can handle a workload of up to 100 lbs.

The PH-3515F offers a 14" diameter screen that includes cross-hairs for easy alignment and an erect image on Day-bright screen.

A wide range of accessories are also available for the PH-3515F making it suitable for a wide variety of applications.

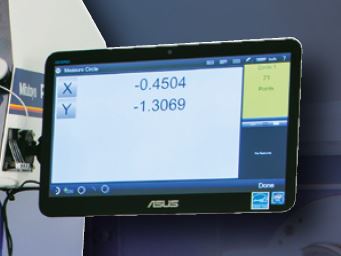

Mitutoyo M2 Geometric Measuring Display

Mitutoyo's newest Digital Display for their Optical Comparator line, the M2 Geometric Measuring Display with the 2D Measuring Software offers the following features...

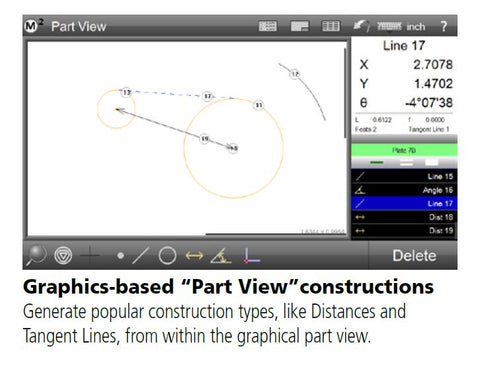

  • Graphics-based "Part View" constructions
    • Generate popular construction types, like Distances and Tangent Lines, from within the graphical part view.

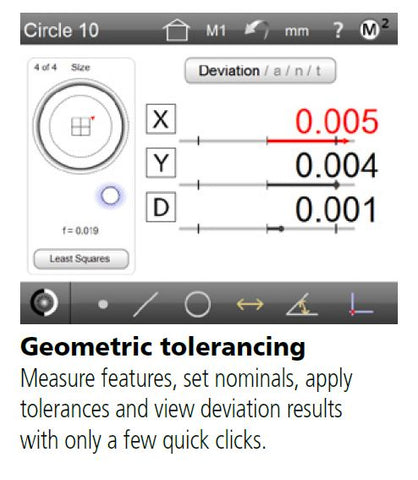

  • Geometric Tolerancing
    • Measure features, set nominals, apply tolerances and view deviation results with only a few quick clicks.

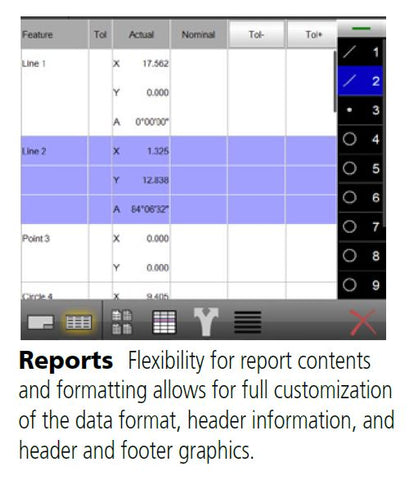

  • Reports
    • Flexibility for report contents and formatting allows for full customization of the data format, header information, and header - footer graphics.
  • Easy to use Touch Screen
Package Includes the following...
    • Main Unit
    • 10X Lens
    • M2 Geometric Measuring Display
    • Free Freight
    • Free Onsite Installation & Initial Calibration

    Free Freight Anywhere in continental USA

    Free On-Site Installation / Initial Calibration
