PH-3515F Mitutoyo Optical Comparator w/QM Data

Mitutoyo PH-3515F Optical Comparator Package

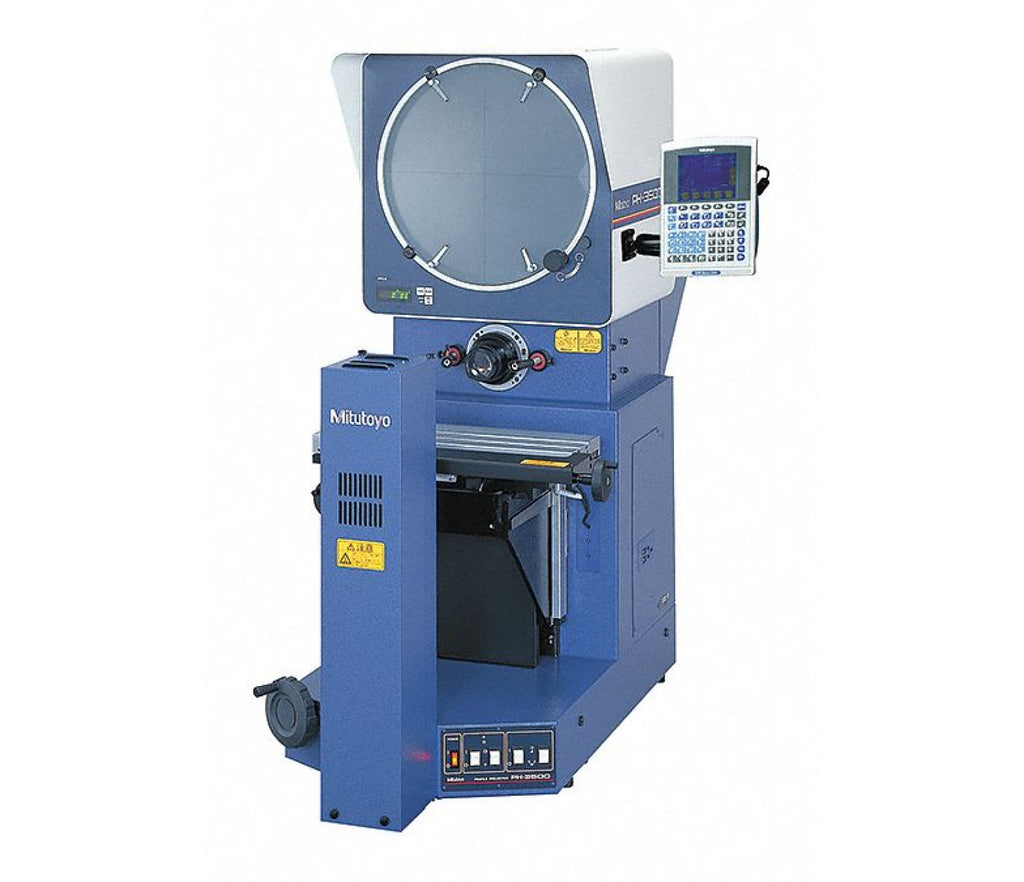

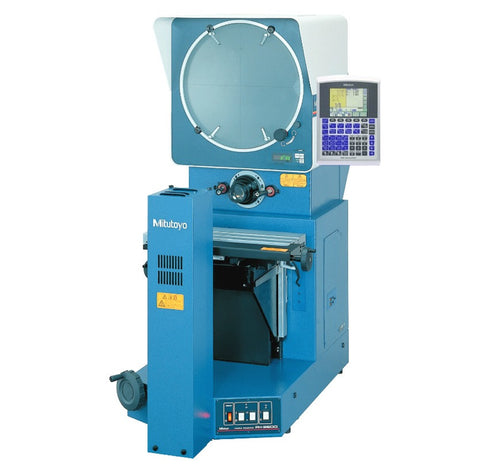

Mitutoyo's PH-3515F is a heavy-duty, bench-top optical comparator that uses a horizontal optical system. This optical comparator includes an 8” x 4” floating-type workstage that incorporates linear scales for fast, accurate measurement. The workstage provides high accuracy and can handle a workload of up to 100 lbs.

The PH-3515F offers a 14" diameter screen that includes cross-hairs for easy alignment and an erect image on Day-bright screen.

A wide range of accessories are also available for the PH-3515F making it suitable for a wide variety of applications.

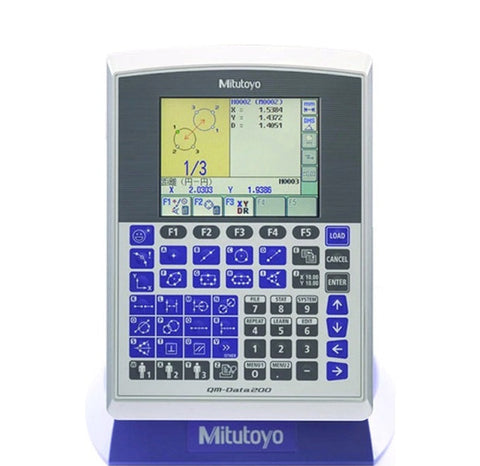

Mitutoyo QM-Data 200 Digital Display

Mitutoyo's popular optical comparator digital display, the QM-Data 200 utilizes a comprehensive key panel that makes it easy for any operator to use. Measurements of combined elements such as circle-to-circle distance, etc., can be measured via one-touch operation. Furthermore, the measurement procedure navigation display, which indicates the next data entry position during a measurement, makes it possible for a beginner to know at a glance where the next measuring position is.

Mitutoyo QM-Data 200 Features include...

• Graphic displays on a large LCD screen for easy operations
• One-key operation for combined measurements that are often used (circle-to-circle distance...)
• Automatic Identification of measuring item eliminates switching between the measurement command keys.
• Includes measurement procedure teaching function.
• Data output to MS-Excel format (csv).

• Mitutoyo PH-3515F Main Unit
• 10X Lens
• QM-Data 200 Digital Display
• Free Freight
• Free Onsite Installation & Initial Calibration
