PV-5110 Mitutoyo Vertical Optical Comparator w/QM-Data Mitutoyo Optical Comparators Mitutoyo

PV-5110 Mitutoyo Vertical Optical Comparator w/QM-Data

$ 24,500.00$ 23,275.00

Customer Reviews

Product Description

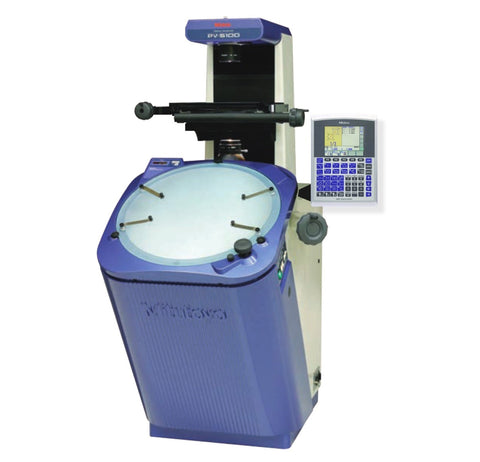

Mitutoyo PV-5110 Optical Comparator w/ 20" Screen

The PV-5110 Optical Comparator is a floor model profile projector that uses a downward illumination system. The large rotatable screen has an effective screen diameter of 20" (508mm), and when the 5X projection lens is used, the large screen allows projection of complete workpieces with a diameter of up to 3.94" (100mm).

In addition, the low screen position enables simple, ergonomic operation and reduces fatigue even when working for long periods. The angled screen also allows for projected images to easily by traced or compared with a template.

Included in this package...

  • PV-5110 Main Unit
  • 10x Projection Lens Set
  • Surface Illumination Unit
  • QM-Data 200 with Arm Mount Digital Display
  • FREE Freight

Mitutoyo PV-5110 Brochure...Click here

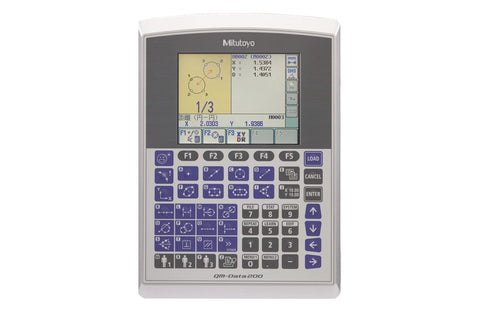

QM-Data 200 with Arm Mount Digital Display

The QM-Data200 is a geometric readout / analysis unit for optical instruments like profile projectors. It features powerful 2D coordinate measurement capabilities with simple key operation. The QM-Data200 improves operator productivity, minimizes errors and saves total measurement time and production cost, while providing powerful data analysis.

Measurement information and data are displayed on the back-lit LCD display with graphical interfaces. The QM-Data lets you easily perform the following measurements:

  • Point-to-Point Distance
  • Line-to-Pont Distance
  • Line-to-Circle Distance
  • Circle-to-Circle Distance
  • Perpendicularity
  • Parallelism
  • Angles
  • Distance between Steps

Mitutoyo QM Data 200 Brochure...Click here

This Package includes Free Freight Anywhere in Continental USA.
