Rayco CMM Fixture Component Kit - R20-CK-C - 1/4-20 Threads

Rayco CMM Fixture Component Kit - R20-CK-C - 1/4-20 Threads

  • $ 3,106.50
  • Save $ 163.50

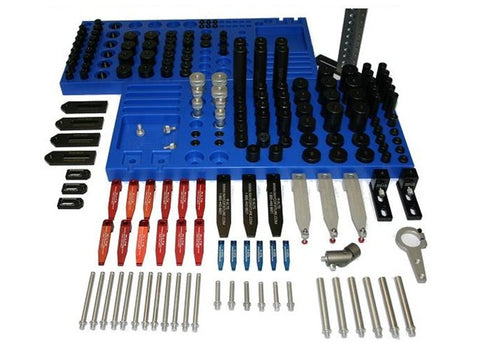

Rayco CMM Fixture Component Kit

Maximize the use of a Rayco CMM Fixture Plate with this 161 pc Component Kit!

1/4-20 Threads

Included in this kit...

  • (6) R20-37550-SO .375” Dia. x .50” Standoff
  • (4) R20-5050-SO: .50” Dia. x .50” Standoff
  • (8) R20-5075-SO: .50” Dia. x .75” Standoff
  • (8) R20-501-SO: .50” Dia. x 1” Standoff
  • (8) R20-502-SO: .50” Dia. x 2” Standoff
  • (4) R20-7550-SO: .75” Dia. x .50” Standoff
  • (8) R20-7575-SO: .75” Dia. x .75” Standoff
  • (8) R20-751-SO: .75” Dia. x 1” Standoff
  • (8) R20-752-SO: .75” Dia. x 2” Standoff
  • (6) R20-754-SO: .75” Dia. x 4” Standoff
  • (8) R20-175-SO: 1” Dia. x .75” Standoff
  • (8) R20-11-SO: 1” Dia. x 1” Standoff
  • (8) R20-12-SO: 1” Dia. x 2” Standoff
  • (6) R20-14-SO: 1” Dia. x 4” Standoff
  • (4) R20-501-PSO; 1/2” Dia. x 1” Pin Standoff
  • (2) R20-7575-PSO: 3/4” Dia. x 3/4” Pin Standoff
  • (6) R20-STS-1: Small Tension Spring – 1.5” Post
  • (12) R20-LTS-3: Large Tension Spring – 3” Post
  • (3) R20-XLTS: Large Tension Spring – 3” Post
  • (3) R20-XLTSP: Extra Large Tension Spring w/ plunger – 3” Post
  • (1) R20-1-TSB: 1” Dia. Tension Spring Bracket
  • (6) R20-NC: Nylon Cone
  • (6) R20-SRP: Steel Resting Pin
  • (1) R20-APJ: Adjustable Pivot Joint
  • (3) R20-50-JS: .50” Dia. Small Jackstand
  • (3) R20-1-JS: 1” Dia. Large Jackstand
  • (3) R20-MSLD: Mini Slide Base
  • (4) R20-SLD: Slide Base
  • (2) R20-LB: Locating Block with Base
  • (1) R20-112-MT4: 1” Sq. x 12” Mini Tower
  • (2) R20-SCT: 1/4-20 Small Component Tray (Black)
