76-003-3 Slide Machining and Drilling Table

76-003-3 Slide Machining and Drilling Table

  • $ 292.20

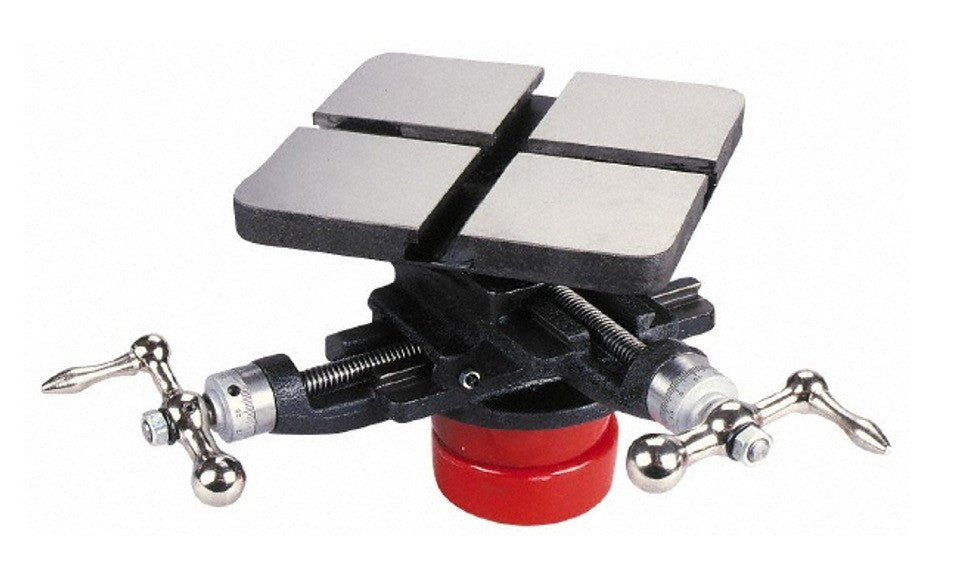

Slide Machining and Drilling Table

Low silhouette table for light-duty work. Table fastens readily to the machine by means of a central base bolt.

Features Include...

  • 7" x 7" Table Size
  • 4.25" Height
  • 5" Table Travel
  • Adjustable gibs
  • 0.100" per dial revolution
  • Rotatable and gradulated 360°
    • Locks by two set screws and internal locking shoes
  • 4 5/8" diameter base with integral 1 1/8" long base bolt for mounting.
