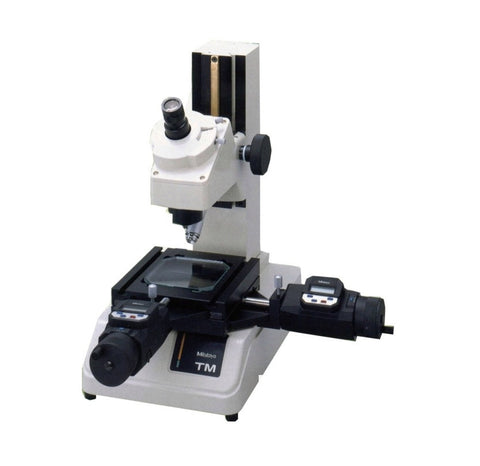

Mitutoyo Toolmakers Microscope

2" x 2" Measuring Range w/ Digital Mic Heads & USB Camera System

The TM-A505B is a compact microscope well suited for measuring dimensions and angles of machined metals. It can also be used to check the shape of screws and gears by attaching an optional reticle. Its compact body makes it ideal for use on shop-floors with limited space!

The eyepiece section of the optical tube incorporates a vernier protractor. Angle measurement is performed easily by turning the protractor to align the cross-hair reticle with the workpiece image. ??Complete selection of interchangeable reticles are available.

Both the transmitted and reflected illumination intensity can be adjusted to obtain the optimal illumination intensity for the workpiece.

The Digital Micrometer Heads included with this unit offer a full 2" of travel in both the X and Y axis.

This complete package includes a USB 3 Megapixel Color Camera system to allow you to display your ToolMakers Microscope image live on your PC monitor.

Features include...

  • 2" x 2" / 50mm x 50mm Measuring Range
  • 0.00005" / 0.001mm Resolution
  • Standard 2X Objective Lens included
  • Standard 15X Eyepiece included
  • 6" x 3.8" / 154mm x 96mm useable area of stage glass
  • 2 sources of illumination included...
    • Transmitted Illumination
      • Stepless brightness adjustment, White LED light source with green filter
    • Surface illumination
      • Oblique single-source type, Stepless brightness adjustment, White LED light source
  • 60° Monocular Optical Tube

Additional Light Sources, Eyepieces, Objectives, and other Mitutoyo Toolmakers Microscope accessories are available... Click Here

FREE GROUND SHIPPING

Now thru 12-15-2023 orders placed on this item will include Free Ground Shipping.

USB Camera System Features include...

  • Sensor: Aptina MT9P001 CMOS (color)
  • Sensor Size: 1/2.5" (5.70mm(H) x 4.28mm(V), diagonal 7.13mm)
  • Resolution: 2592x1944 (approx.5,040,000 pixels)
  • Reduction Lens: 0.5X
  • Pixel Size: 2.2m x 2.2m
  • G Sensitivity: 0.53v / lux-sec (550nm)
  • Frame Rate: 90fps @640x480, 27fps @1280x960, 7fps @2592x1944
  • Exposure: 0.21~2000ms, ROI Auto & Manual
  • Scan Mode: Progressive
  • Dynamic Range: 66.5dB
  • A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
  • SN Ratio: 40.5dB
  • Spectral Range: 380-650nm (with IR-filter)
  • Binning: 1x1, 2x2, 4x4
  • White balance: ROI White Balance/ Manual Temp-Tint Adjustment
  • Color Rendering Technique: Ultra Fine Color Engine
  • Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
  • Recording System: Still Picture and Movie
  • Cooling System: Natural
  • Operating Temperature: -10°C~50°C
  • Storage Temperature: -20°C~60°C
  • Operating Humidity: 30~80%RH
  • Storage Humidity: 10~60%RH
  • Power Supply: DC 5V over USB Port

Software Features...

  • Operating System: Windows XP/Vista/7/8/10 (32 & 64 bit), Mac OS X, Linux
  • PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
  • Advanced software for Windows...
    • Offers Stitching, EDF, video recording and measurement functions
    • Conducts measurements for lengths, angles, arcs, areas and etc.
    • Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    • Edit and process microscopy images in a manner similar to PhotoShop
    • Live video and still image capture can be set in different resolutions simultaneously
  • More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
    Life-time free software upgrades

Life-time free software upgrades

Packing List:

  • Mitutoyo Toolmakers Microscope w/Digital Micrometer Heads
  • 5MP digital camera
  • calibration slide
  • 0.5X reduction lens
  • 6' (1.8m) USB cable
  • 30mm and 30.5mm adapters
  • CD with software and user's instructions

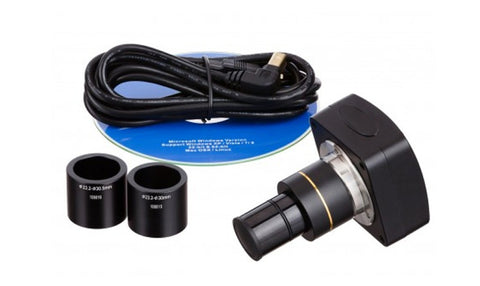

This a higher-speed version of our 5MP digital camera. An increased buffer allows for an increase in framerate. This C-mount camera is used for microscopes, designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows XP/Vista/7/8/10 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

Designed using the C-mount standard, the camera with the included reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install. Drawing power from the USB connection, no additional connections are needed. The included calibration slide allows you to take accurate measurements in the software by creating baseline measurements at multiple magnifications.
