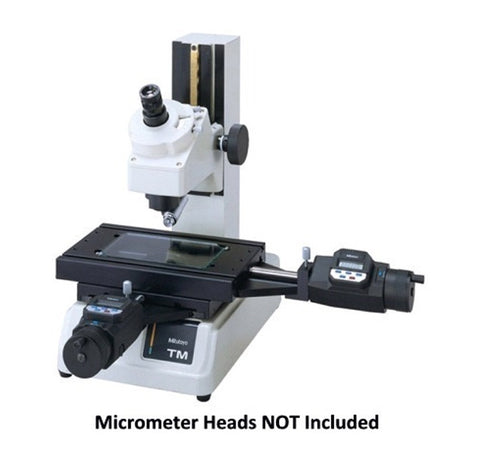

TM-1005B Mitutoyo Toolmakers Microscope

TM-1005B Mitutoyo Toolmakers Microscope

  • $ 5,747.50
  • Save $ 302.50

4" x 2" Stage, No Mic Heads

The TM-1005B is a compact microscope well suited for measuring dimensions and angles of machined metals. It can also be used to check the shape of screws and gears by attaching an optional reticle. Its compact body makes it ideal for use on shop-floors with limited space!

  • The eyepiece section of the optical tube incorporates a vernier protractor. Angle measurement is performed easily by turning the protractor to align the cross-hair reticle with the workpiece image.
  • Complete selection of interchangeable reticles are available.
  • Both the transmitted and reflected illumination intensity can be adjusted to obtain the optimal illumination intensity for the workpiece.

   Mitutoyo Toolmakers Microscope Brochure... Click Here
