HDMI Digital Microscope w Articulating Arm, 10.5X-75X

$ 599.95$ 369.95

Customer Reviews

Product Description

HDMI Digital Microscope

The UHM210-11 brings a new level of versatility to real-time imaging. This all-in-one digital microscope can be used as a standalone imaging system, or with your PC to view live microscopic images with the ability to record video and photos. Equipped with an 11” articulating arm, dual ring lights, and variable focal length, this microscope can be the perfect tool for laboratories, production lines, and repair stations.

The internal focusing system uses variable focal length to change both the magnification and working distance. At its lowest position, the microscope produces its maximum magnification. As the microscope’s height is increased, the magnification decreases to provide a larger field of view -- up to 52mm x 29.4mm with the arm fully extended. The final magnification of the displayed image is determined by the size of the monitor being used, as can be seen in the table below.

 Monitor Size





5.5x-39x 9.2x-66x 10.5x-75x 14x-100x

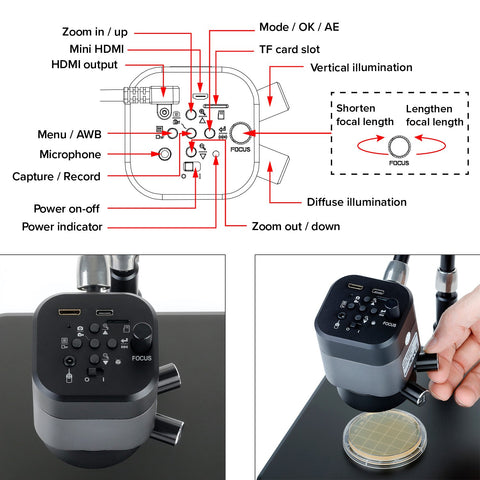

The UHM series digital microscopes are designed to function as stand-alone imaging systems, or with a PC to capture high-quality photos and videos. A mini-HDMI connector allows you to display live 1080p images on a digital monitor or television, using the microscope’s internal software to control resolution, exposure, white-balance, and more. Photos and videos are recorded directly to MicroSD media in standard JPG and MOV formats.

The microscope can also be used with your PC via USB. The included software allows you to capture photos and videos to your computer, and provides basic image processing, editing and measurement tools.

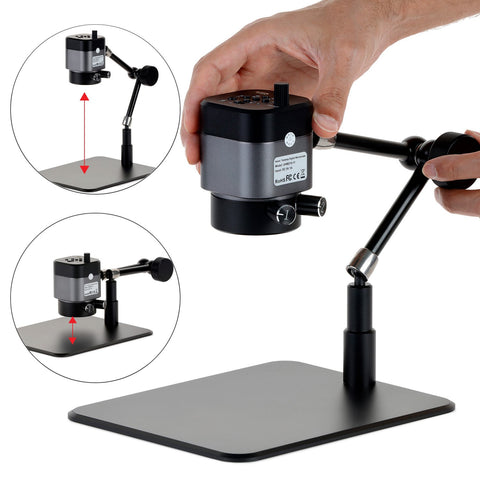

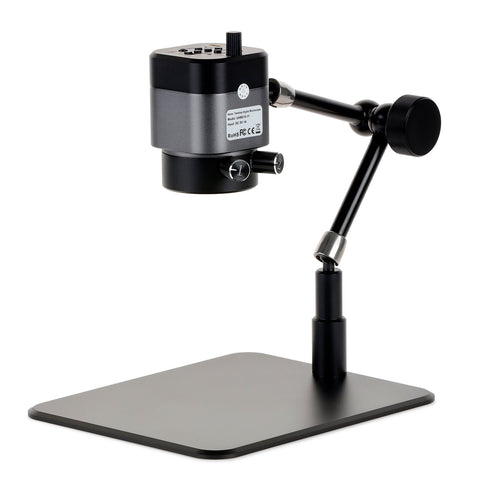

With a 7” x 11” footprint, the microscope is ideal for any workspace. The triple-joint 11” articulating arm allows you to quickly adjust the microscope’s height and angle, and uses a single locking knob to secure its position. The flexibility of the arm allows you to view objects from any angle.

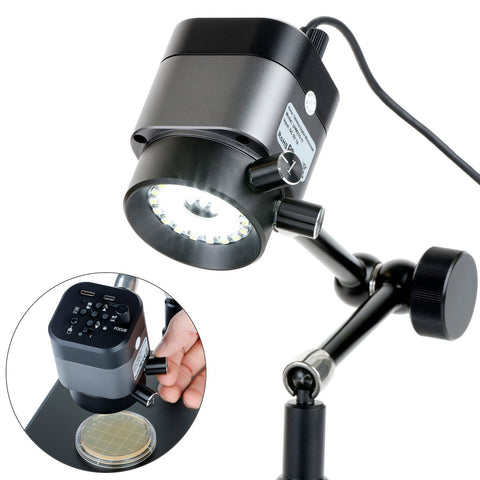

The highly flexible illumination system uses dual LED ring lights to ensure every detail is captured. The outer ring produces diffuse lighting for general use, while the inner ring brings out finer detail in textures. Independent brightness controls allow you to fine-tune the lighting to suit your needs.

Optical Specifications include...

  • Optical Magnification: 0.11X-0.79X
  • Depth of Field: 0.8mm-6.5mm
  • Field of View...
    • 7.1mm x 4.1mm (min)
    • 52mm x 29.4mm (max)
  • Working Distance: 44mm-230mm

Sensor Specifications...

  • Model: IMX291 (color)
  • Sensor Type: CMOS
  • Sensor Optical Format: 1/2.8"
  • Active Pixels: 2.07M (1920 x 1080)
  • Pixel Size: 2.9µm x 2.9µm
  • Active Sensor Area: 5.57mm x 3.13mm (6.39mm diag)
  • Shutter: Electronic Rolling Shutter
  • Sensitivity: 1300mV @ 1/30s (f/5.6)
  • Spectral Response: 380-650nm with IR-cut filter

Other Specifications...

  • Video Preview Resolution (HDMI): 1920 x 1080
  • Video Capture Resolution...
    • 1920x1080p30
    • 1280x720p60
  • Internal Video Capture Format: MOV
  • Photo Capture Resolution: 1920 x 1080
  • Internal Photo Capture Format: JPG
  • Recording Media: MicroSD card (card not included, max 128GB)
  • Connectivity: Mini-HDMI, USB type C
  • Power: DC 5V 900mA over USB
  • Dimensions: 180mm (W) x 208mm (H) x 280mm (D) (7" x 8.2" x 11")

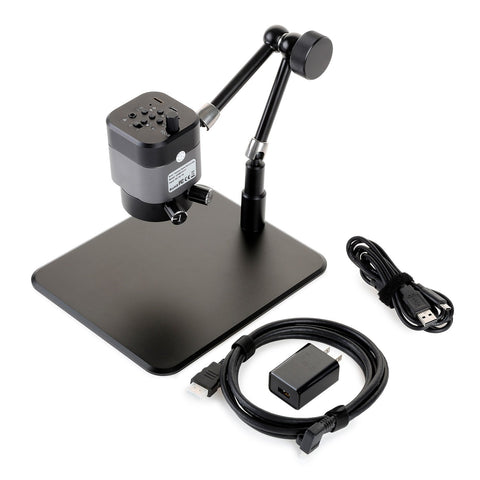

Package includes...

  • One digital microscope on articulating arm stand
  • One HDMI cable
  • One USB cable
  • One AC/DC USB power adapter
