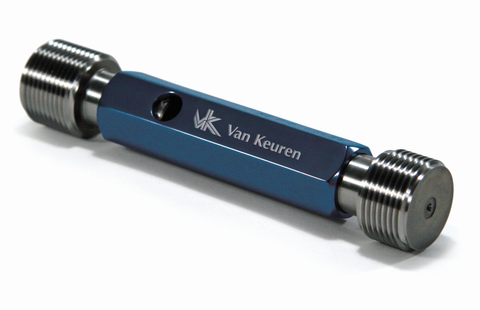

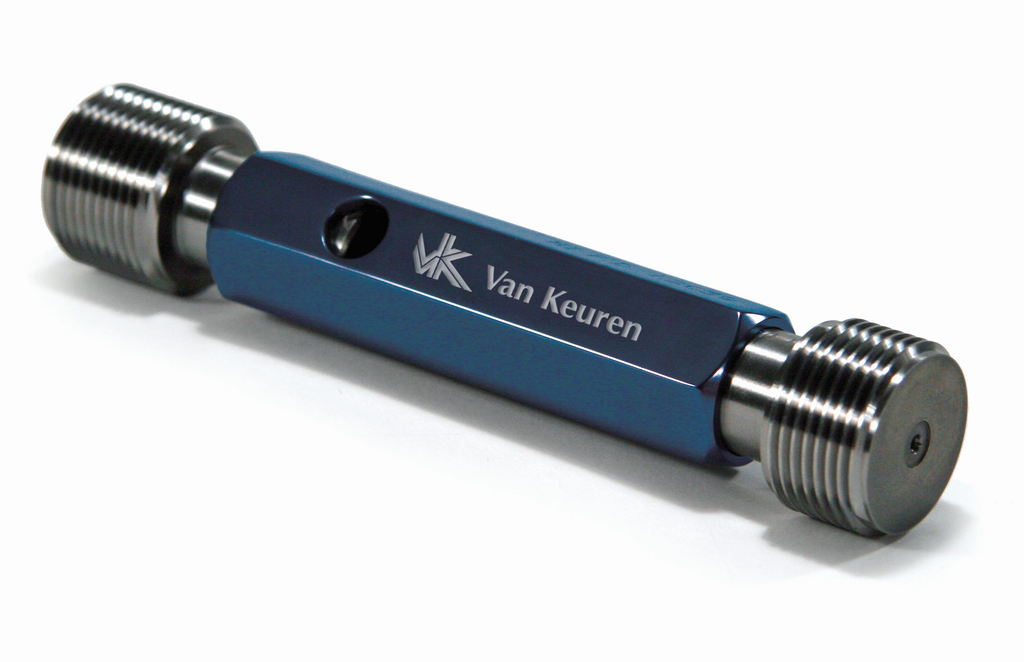

Van Keuren Metric Thread Plug Gages GO/NOGO Van Keuren's Thread Gages allow you to inspect the pitch diameter and the functional thread for internal threaded products. All stock Metric Thread Plug Gages are made to Class X tolerances per ASME B1.16M (Metric M Series Screw Threads). A Certificate of Accuracy is included with each gage. Available in 6H, and each Thread Plug Gage is marked with nominal size, threads per inch, class of fit and pitch diameters. Features include... M16.0x1.50 Threads GO and NO GO Set Certificate of Accuracy included Select Taperlock, Reversible, or Set Plug from Pull Down Menu. Taperlock Plug 6H... GO Gage Length: 22.2mm NO GO Gage Length: 12.7mm GO Pitch Diameter: 15.026mm NO GO Pitch Diameter: 15.216mm Reversible Plug 6H... GO Gage Length: 44.5mm NO GO Gage Length: 44.5mm GO Pitch Diameter: 15.026mm NO GO Pitch Diameter: 15.216mm Set Plug 6g... GO Gage Length: 31.8mm NO GO Gage Length: 31.8mm GO Pitch Diameter: 14.994mm NO GO Pitch Diameter: 14.854mm Need a Certificate of Calibration? None of our Thread Gage manufacturers include a Certificate of Calibration with their gages off-the-shelf. If you need a Certificate of Calibration, that is a NIST-traceable document with verified readings, this is an additional Calibration Service that you would need to order with this gage. Click Here to order the Calibration Service for this Thread Plug Gage.
