Van Keuren Metric Thread Plug Gage GO/NOGO M18.0x1.50

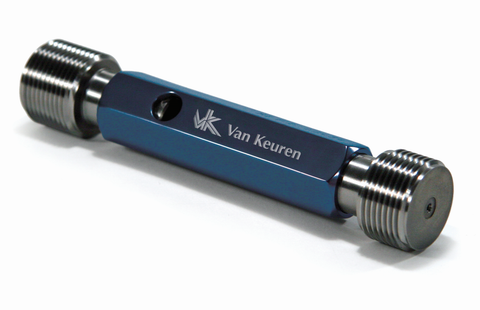

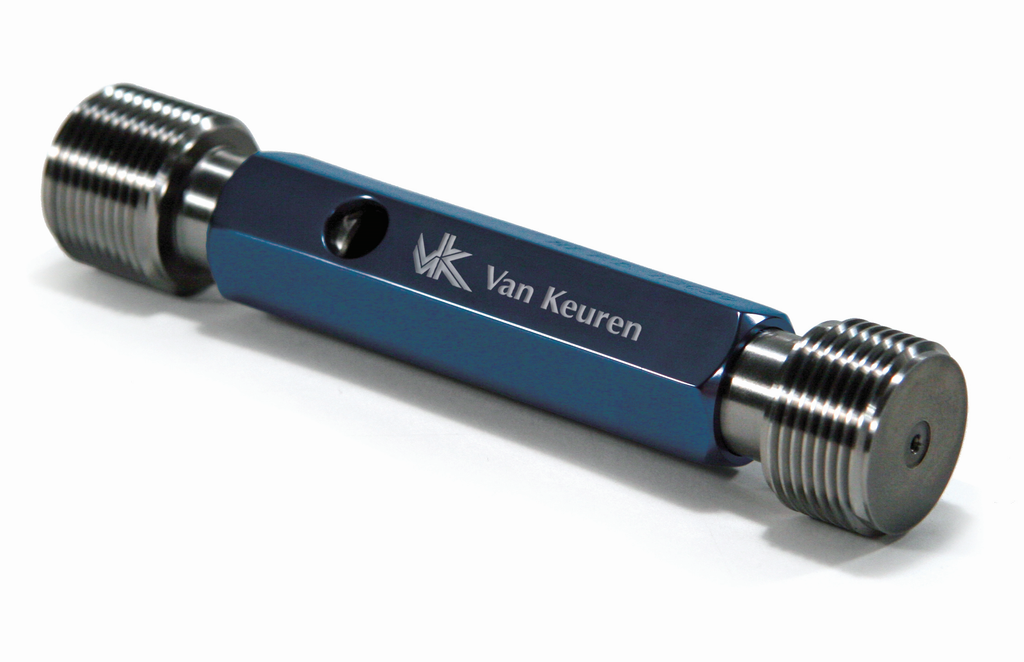

Van Keuren Metric Thread Plug Gage Assembly GO/NOGO M18.0x1.50

$ 150.00

Customer Reviews

Product Description

Van Keuren Metric Thread Plug Gages GO/NOGO

Van Keuren's Thread Gages allow you to inspect the pitch diameter and the functional thread for internal threaded products.

All stock Metric Thread Plug Gages are made to Class X tolerances per ASME B1.16M (Metric M Series Screw Threads).

A Certificate of Accuracy is included with each gage.

Available in 6H, and each Thread Plug Gage is marked with nominal size, threads per inch, class of fit and pitch diameters.

Features include...

  • M18.0x1.50 Threads
  • GO and NO GO Set
  • Certificate of Accuracy included

Select Taperlock, Reversible, or Set Plug from Pull Down Menu.

Taperlock Plug 6H...

  • GO Gage Length: 22.2mm
  • NO GO Gage Length: 12.7mm
  • GO Pitch Diameter: 17.026mm
  • NO GO Pitch Diameter: 17.216mm

Reversible Plug 6H...

  • GO Gage Length: 44.5mm
  • NO GO Gage Length: 44.5mm
  • GO Pitch Diameter: 17.026mm
  • NO GO Pitch Diameter: 17.216mm

Set Plug 6g...

  • GO Gage Length: 31.8mm
  • NO GO Gage Length: 31.8mm
  • GO Pitch Diameter: 16.994mm
  • NO GO Pitch Diameter: 16.854mm
