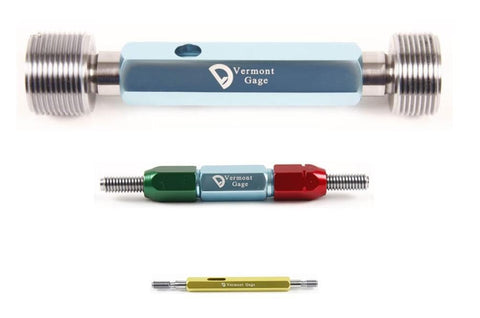

Vermont Standard Metric Thread Plug Gages GO / NO GO M20.0x1.50
Vermont Standard Metric Thread Plug Gages GO / NO GO
Vermont's Thread Gages allow you to inspect the pitch diameter and the functional thread for internal threaded products.
All stock Metric Thread Plug Gages are made to Class X tolerances per ASME B1.16M (Metric M Series Screw Threads).
A Certificate of Accuracy is included with each gage.
Available in 6H, and each Thread Plug Gage is marked with nominal size, threads per inch, class of fit and pitch diameters.
- M20.0 x 1.50 Threads
- GO and NO GO Set
- Certificate of Accuracy included
Select Taperlock or Set Plug from Pull Down Menu.
Taperlock Plug 6H...
- GO Gage Length: 22.2mm
- NO GO Gage Length: 12.7mm
- GO Pitch Diameter: 19.026mm
- NO GO Pitch Diameter: 19.216mm
Set Plug 6g...
- GO Gage Length: 31.8mm
- NO GO Gage Length: 31.8mm
- GO Pitch Diameter: 18.994mm
- NO GO Pitch Diameter: 18.854mm
