Vermont Standard Metric Thread Plug Gages GO / NO GO M24.0x1.50

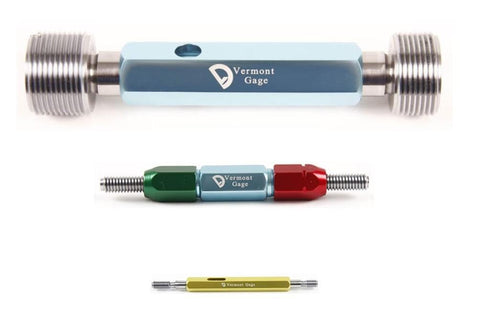

Vermont Standard Metric Thread Plug Gages GO / NO GO
Vermont's Thread Gages allow you to inspect the pitch diameter and the functional thread for internal threaded products.
All stock Metric Thread Plug Gages are made to Class X tolerances per ASME B1.16M (Metric M Series Screw Threads).
A Certificate of Accuracy is included with each gage.
Available in 6H, and each Thread Plug Gage is marked with nominal size, threads per inch, class of fit and pitch diameters.
- M24.0 x 1.50 Threads
- GO and NO GO Set
- Certificate of Accuracy included
Select Taperlock or Set Plug from Pull Down Menu.
Taperlock Plug 6H...
- GO Gage Length: 25.4mm
- NO GO Gage Length: 15.9mm
- GO Pitch Diameter: 23.026mm
- NO GO Pitch Diameter: 23.226mm
Set Plug 6g...
- GO Gage Length: 38.1mm
- NO GO Gage Length: 38.1mm
- GO Pitch Diameter: 22.994mm
- NO GO Pitch Diameter: 22.844mm
