Deltronic Pin Gage Sets

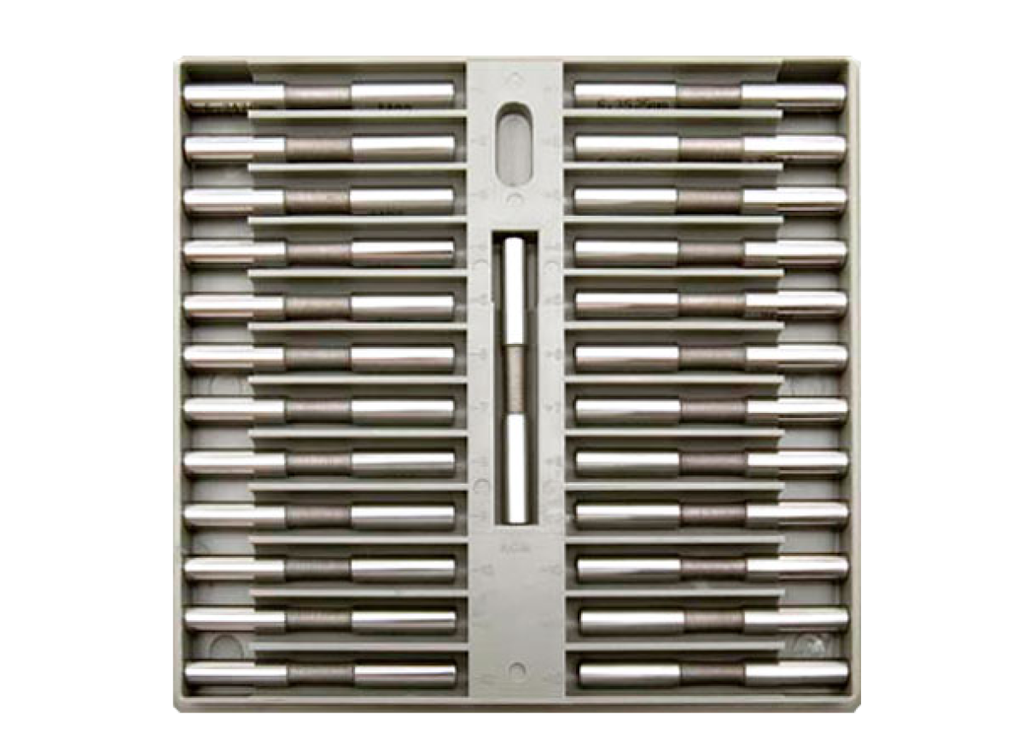

Elevate your precision measurements with the Deltronic 25-pc Class X Metric Pin Gage Set, an indispensable tool in the metalworking industry. This unique gage set, known as PPM25, features a comprehensive assortment of 25 pin gages tailored to meet the diverse needs of the industry. The set includes a Nominal Pin Gage, along with 12 pins in 0.0025mm increments above the Nominal and another 12 pins in 0.0025mm increments below the Nominal. What sets this set apart is its flexibility—you can order it with any desired nominal pin, providing a customizable solution for your specific requirements.

Every Deltronic Class X Gage Pin Set comes with a Certificate of Accuracy, a testament to the commitment to precision. This certificate guarantees the accuracy of each pin within +0.001mm / -0.000mm, ensuring reliable and consistent measurements. The surface finish of approximately 1 microinch and the concentricity of both ends add to the overall quality of these gage sets.

These metric gage sets find application across various quality control, prototype, and production functions. They serve as standards for zeroing comparators, setting snap gages, determining hole center and layout, checking micrometers, and providing precision arbors for staging parts or checking runout of blanks. Receiving inspectors can easily step up, in tenth steps, to actual new hole sizes of plated or anodized parts, enhancing efficiency in the inspection process.

To tailor the set to your specific needs, simply select the Nominal Pin Gage Size from the pulldown menu. After placing your order, we will promptly email you to confirm the actual Nominal Pin Gage Size you desire. Alternatively, you can include this information in the Notes section during checkout, ensuring a seamless and personalized ordering experience. Choose the Deltronic 25-pc Class X Metric Pin Gage Set for unparalleled precision in your metalworking endeavors.
