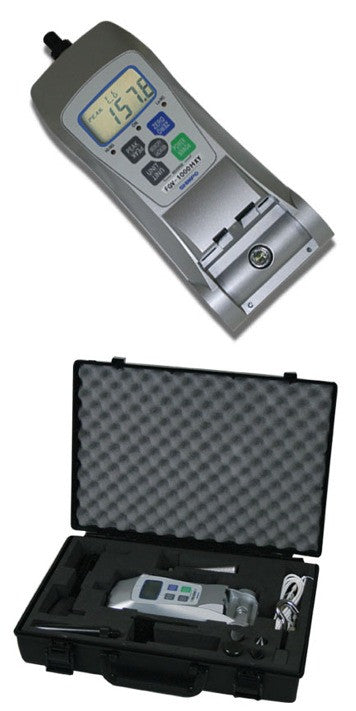

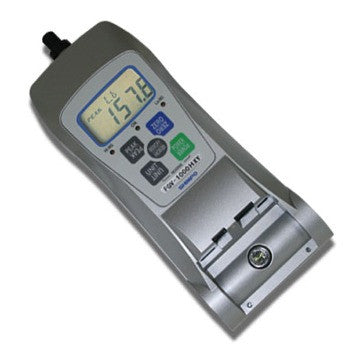

Digital DART Force Gage with SPC Output


Digital DART Force Gages with SPC Output

The DART is a High Capacity Digital Force Gage with 180° reversible display & dual labeled keypad for both push, pull applications.

The Series FGV-HXY Digital Force Gages offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

Models are available in 500 lb. or 1000 lb. ranges providing necessary performance for high capacity testing.

The 180° reversible display combined with the adjustable force direction and dual labeled keypad enable these units to excel in both compression and tension applications in any direction. FGV models possess onboard statistical calculations and provide fast access to maximum, minimum, average and standard deviation data. Models include the free TORIEMON software and USB cable allowing further data analysis on a PC. The FGV-HXY’s 1,000 point memory allows for data exporting in real time or after testing is complete. In addition, the RS-232C, USB and analog outputs provide maximum communication flexibility.
