deltronic pin gages

precision Plug gage measuring

Elevate your precision measurement capabilities with our comprehensive collection of Deltronic Class X Pin Gages, each designed to exacting standards to meet the stringent demands of modern industries. Our Deltronic Class X Individual Pin Gages set the benchmark for accuracy, boasting an impressive tolerance of +0.000040" / -0.000" and supplied with a Certificate of Accuracy traceable to the National Institute of Standards and Technology (NIST). The inclusion of a relief "handle" not only enhances ease of use but also adds a layer of versatility, allowing for application with or without handles. With lengths ranging from 1-7/8" to 3.5", these individual pins provide a tailored solution for your specific measurement requirements.

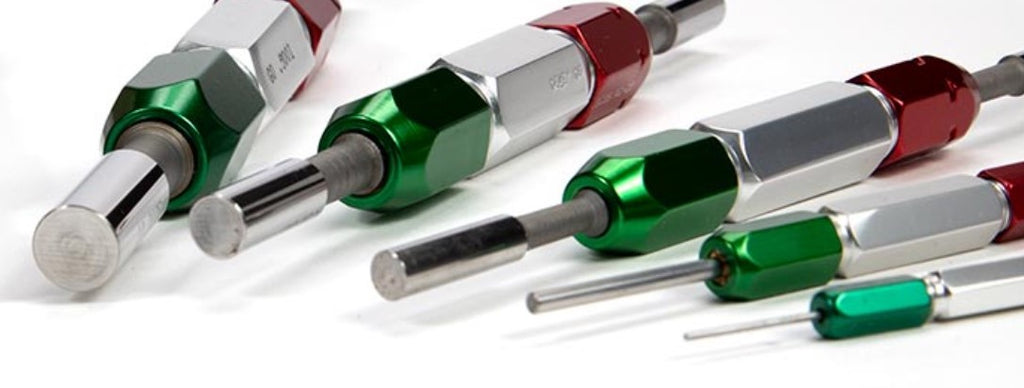

Streamline your measurement processes with the Deltronic Class X Pin Gage Assemblies, meticulously crafted to ensure precise and reliable measurements. These assemblies serve a multitude of purposes, from quality control and calibration of measurement instruments to tool setting, machining setup, and Go/No-Go testing. Each assembly includes a Class X GO Pin, a Class X NOGO Pin, and a Double End Handle with Bushings, offering a comprehensive solution for your measurement needs. Customize your order by selecting the pin gage range, and specify your sizes during checkout or via email for a tailored solution that aligns perfectly with your application requirements.

For a versatile solution catering to a range of applications, explore the Deltronic 25-pc Class X Metric Pin Gage Set. This unique set includes a Nominal Pin Gage and 24 additional pins in 0.0025mm increments, providing a comprehensive set for various measurement needs. With a Certificate of Accuracy guaranteeing each pin's accuracy within +0.001mm / -0.000mm, these sets are ideal for applications such as Q.C., prototype development, and production functions. Select the Nominal Pin Gage Size to customize your set, ensuring a perfect fit for your precision measurement requirements. Choose Deltronic Class X Pin Gages to experience unparalleled accuracy and reliability in your measurement and inspection processes.
